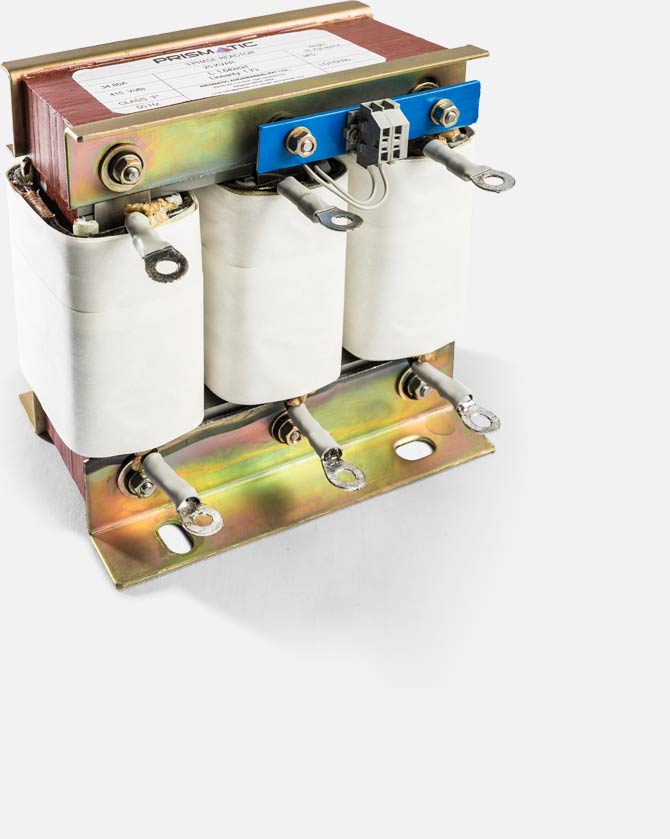

Detuning Reactor 440V 7%

Transformers & Reactors

Full range of DTRs from 1KVAr to 100KVAr for APFC Panels and Passive Harmonic Filtering.

Tech Specs

Electrical Parameters and termination details
Rating (KVAr)Current (A)Inductance (mH)Appx weight of Copper DTR (KG)Appx weight of Aluminium DTR (KG)Termination Type
11.349.853.803.504mm² Connector
22.624.924.704.504mm² Connector
33.916.625.805.504mm² Connector
45.212.466.305.804mm² Connector
56.69.976.606.304mm² Connector
7.59.86.238.307.904mm² Connector
1013.14.538.808.904mm² Connector
12.516.43.849.609.2016mm² 6Ø Cu/Alu Lug
1519.73.1210.8010.3016mm² 6Ø Cu/Alu Lug
2026.22.2714.3013.5016mm² 6Ø Cu/Alu Lug
2532.81.8517.5015.8025mm² 6Ø Cu/Alu Lug
3039.41.5619.5018.1025mm² 6Ø Cu/Alu Lug
5065.60.9232.0025.2050mm² 8Ø Cu/Alu Lug
7598.40.6141.0035.4050mm² 8Ø Cu/Alu Lug
100131.20.4652.5043.5070mm² 10Ø Cu/Alu Lug
Quantity Rating & Winding A (max)B (max)C (max)C1 (max)D (max)X (±3mm)Y (±3mm)S1 (slot width)S2 (slot width)
150100-190-7051714
150125-190-7056714
150125-190-7061714
160130-200-7061714
160130-200-7071714
200130-220-8075714
200130-230-8066714
230130200-1808076714
215130200-180150811020
215150230-210150861020
230170230-230150991020
215170230-230150120820
270170290-2301501011125
270200300-2601501171125
280200360-2601501171125
150115-200-7051714
150125-200-7056714
160125-210-7061714
160125-220-7061714
160125-230-7071714
200125-240-TBDTBD714
210125-250-8073714
230125210-1808076714
230130210-180150791020
230130230-1808081714
250160230-21015091714
260160230-210130961020
285180290-2301501011125
270220330-2701501011125
280220340-2701501171125
Technical Drawing of Detuning Reactor 7%
All dimensions are in mm. Not to scale.
Reference Standard
IEC 61558-2-20 EN 61558-2-20 IS-5553-1989
Detuning Factor
7%
Input Voltage
440VAC, 3 Phase
Frequency
50Hz
Cooling
Air Natural
Insulation Class
Class-H
Ambient Temperature
50ºC Max
Conductor
Copper / Aluminium
Enclosure
Not Applicable
Protection Class
IP00
Linearity
1.73 × Irms
BDV Winding to Core
2.5KVAC / 5mA / 1Min
Thermal Relay
NC Contact

Notes

  1. The listed products are designed to handle industry standard harmonic levels.
  2. Contact us for special reactors capable of handling high THD levels.
  3. RoHS 3 compliance is available on most products, subject to our confirmation.
